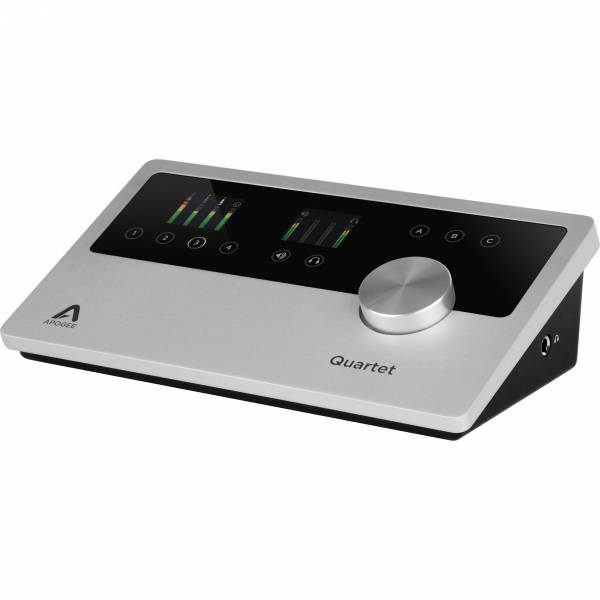

Apogee Quartet 頂級錄音界面/錄音卡規格表
麥克風前級:
•EIN: 128dB (un-weighted) @ 60dB, 150Ohm input
•最大輸入電平: +20dBu
•輸入阻抗: 3KOhm
高阻抗輸入:
•最大輸入電平:14 dBu
•輸入阻抗: >2MOhm
類比/數位轉換:
•最大輸入電平(+4dBu ref): +20dBu
•最大輸入電平 (-10dBV ref): +6dBV
•輸入阻抗: 5KOhm
•頻率響應 20 Hz -20Khz: > +/-0.2dB (@44.1Khz)
•Rel. THD + N: -106dB (@ 96Khz)
•動態範圍: 114dB (A-weighted)
數位/類比轉換:
•最大輸出電平(+4dBu ref): +20dBu
•最大輸出電平 (-10dBV ref): +6dBV
•線性輸出阻抗: 90 Ohm
•最大耳機輸出電平: 19dBu
•HPH輸出阻抗 30 Ohm.
•頻率響應 20Hz -20 Khz: > +/- 0.05dB (@44.1Khz)
•Rel. THD+N : -113dB (@96Khz)
•Dyn Range: 123dB (A-weighted)
特點:
•USB 2.0 高速傳輸的Mac 專用聲音介面
4 組類比輸入:
4 組類比輸入:
•Combination line (balanced +20dBu max)
•Mic/Instrument (+20dBu/+14dBu max)
•4 Microphone preamps with up to 75dB of gain
•Selectable 48v phantom power, Soft Limit and phase invert
數位輸入:
•ADAT/SMUX Input, 8 channels, 2 Toslink connectors, 44.1kHz to 96kHz
•MIDI input (USB-A type connector)
•8組類比輸出:
•6 Balanced line outputs, +20 dBu maximum output level
•1 Independent 1/4” stereo headphone output
•數位輸出:
•MIDI output (USB-A type connector)
•Word clock output on BNC connector
•A/D 以及 D/A轉換: 24 bit/192kHz
•2 組面板高解析的OLED顯示幕
控製旋鈕
•6 組觸控墊可直接選擇輸入以及輸出
•3 組可指派的控製觸控墊:
•Mute Outputs
•Dim Outputs
•Sum to Mono
•Clear Meters
•Engage Speaker Set (allows monitoring of up to 3 pairs of speakers)
相容軟體:
Quartet 可以與支援所有 Core Audio 相容的應用程式:
•Logic
•Pro Tools 9 and 10
•Final Cut
•Ableton Live
•GarageBand
•Studio One
•Cubase
•Digital Performer
•Nuendo
