PSI Audio A14 MS STUDIO BLACK 的頻率範圍低至 56 Hz,其尺寸的透明低音再現給人留下了深刻的印象。通過添加我們的一個低音炮,您可以將一對A14-MS變成一個適當的全頻系統,具有您想要的所有清晰度和精度。它非常適合空間有限但仍需要最佳精度和可靠性的應用。

  • 全系列公司貨、享保固
  • 實體門市 / 網路同步銷售
  • 專業錄音室及音樂製作工程人員詢問
  • 門市提供免費試聽服務

NT$130,800 NT$140,800


PSI A-14 Black
This item: PSI Audio A14 MS STUDIO BLACK 監聽喇叭


NT$130,800 NT$140,800
NT$130,800 NT$140,800
NT$26,800 NT$40,200
NT$54,000 NT$55,000

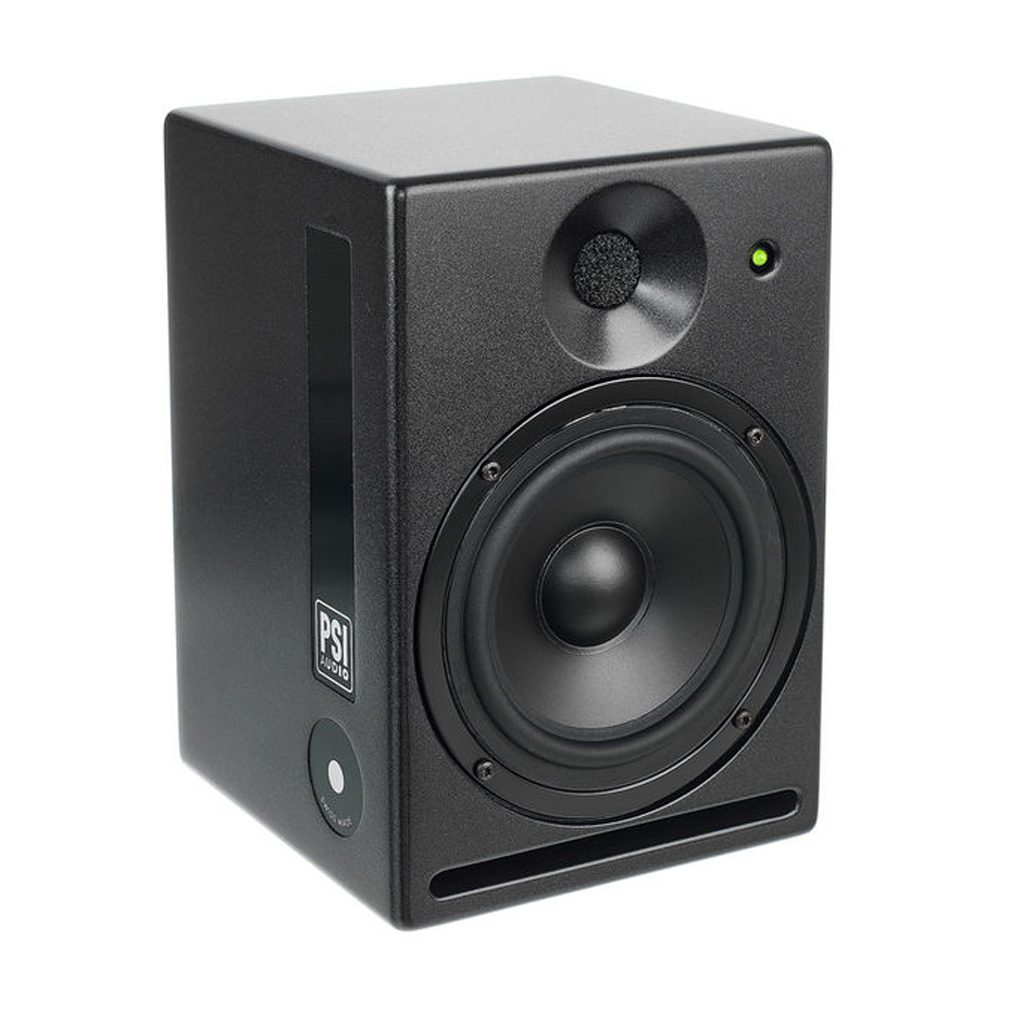

PSI Audio A14 MS STUDIO BLACK 黑色 五吋 監聽喇叭

  • 完全模擬接線,無需 DSP
  • 用於正確立體成像的補償相位響應
  • 揚聲器:1x 147 毫米/1x 20 毫米
  • 功率:70 + 30 W RMS
  • 頻率範圍:56 – 22,000 赫茲(-6 分貝)
  • 容差:+/- 2.5 dB (65 – 18.0000 Hz)
  • 相位公差:+/- 45° (260 – 16,000 Hz)
  • 最大限度。聲壓級(1m):101 分貝

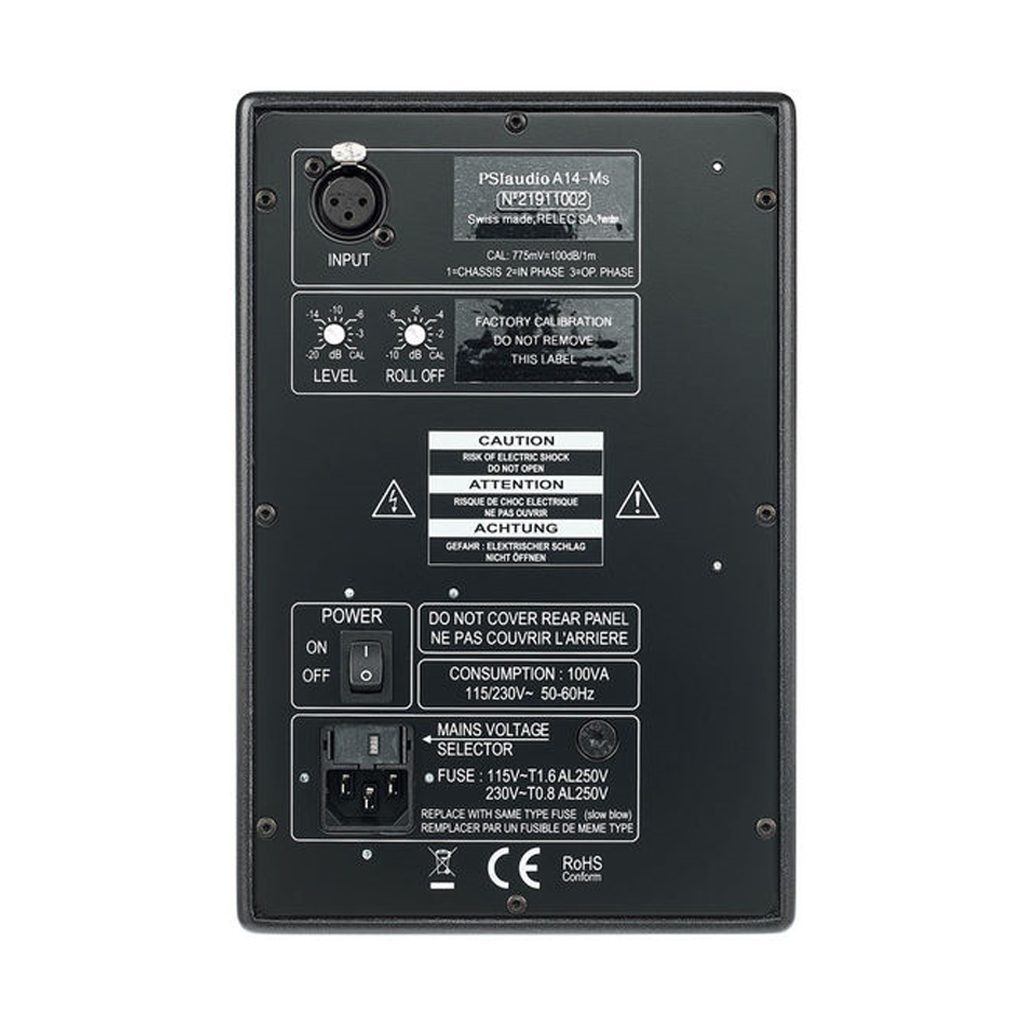

  • 平衡 XLR 輸入
  • 尺寸:163 x 243 x 170 毫米
  • 重量:5.1 公斤
  • 顏色:白色



您使用 A14-M 的成功故事

只有你知道你的故事從哪裡開始,誰知道它會帶你去哪裡?有了 A14-M,您可以自信地大步向前。這些揚聲器的大小令人難以置信,它們將幫助您書寫成功故事的下一章。

您可以信任您的揚聲器,因為正是它們的聲音為 PSI Audio 贏得了全世界音頻專業人士的尊重。基於 40 多年的經驗和不斷的發展,A14-M 無疑是市場上最準確、最自然的緊湊型監聽音箱。它已經擁有令人印象深刻的頻率範圍,並且對於最低深度的額外衝擊力,A14-M 與 A125-M 等低音炮完美配合。也許您需要一個特別緊湊的設置,也許您需要在旅途中攜帶您的揚聲器——無論如何,A14-M 是您值得信賴的伴侶。



當您找不到適合您想要通過揚聲器實現的聲音精度的驅動器時,您會怎麼做?在 PSI Audio,我們決定建立自己的。
A14-M 中使用的高音揚聲器是獨一無二的,我們自己開發並在瑞士製造中手工製造。優於任何市場購買的解決方案,我們的高音揚聲器提供無與倫比的清晰度、微妙性和保真度。製作這款高音揚聲器花費了很多時間和精力——當然比從國際供應商那裡購買要多得多。


Flat Response



粉絲頁直接詢問 :

反拍樂器 FB


Each speaker is individually calibrated in our anechoic chamber and is delivered with its frequency response sheet. A proof of quality.

Extend the low frequencies and add power

Use one of PSI Audio’s Subwoofer / LFE to add more energy and low end to your A17-M:

What do you do when you cannot find a driver appropriate for the sonic accuracy you want to achieve with your speaker?

At PSI Audio, we decided to just build our own then.

The tweeter used in the A17-M is unique, our own development and built by hand in our manufacture in Switzerland.

Superior to any market-bought solutions, our tweeter offers unparalleled clarity, subtlety and fidelity.

It took a lot of time and effort to create this tweeter – certainly a lot more than buying one from an international supplier would have.

Stereo is more than just volume differences between the left and right channels.

Phase relations are paramount to determine the accurate position of a signal in the acoustic space –

and hence equally important in the development of PSI Audio speakers.

The accurate phase alignment provided by PSI Audio CPR technology recreates the vivid spatial listening experience

as it was intended. Instrument placement, reverb envelopes, even compression artefacts are easy to identify with the phase-corrected reproduction of PSI Audio speakers.




貨號: 11415008 分類: ,
重量 7.4 公斤
尺寸 20 × 32 × 23 公分
Data A14-M (Broadcast & Studio) [Unit]
Potential peak power 110 + 45 W
Continuous max SPL@1 m 98 dB
Short term max. SPL@1m 103 dB
Peak max. SPL@1m 113 dB
Signal to noise ratio (S/N) 95 dBA
Bandwidth at -6dB 56-23'000 Hz
SPL tolerances  ±2.5 dB
Phase tolerances  ± 45 (350 Hz – 20 kHz) deg
Dispersion (H x V) 80 x 35 deg
System 2 ways
Crossover frequency 3600 Hz
Woofer ext. diam. 147 mm
Woofer ext. diam. 5.8 in
W. diaphragm diam. 104 mm
W. diaphragm diam. 4.1 in
Tweeter ext. dim. 90 mm
Tweeter ext. dim. 3.5 in
T. diaphragm diam. 27 mm
T. diaphragm diam. 1.06 in
Dimensions W x H x D 163 x 243 x 170 mm
Dimensions W x H x D 6.4 x 9.6 x 6.7 in
Net Weight 4.9 Kg
Net Weight 10.8 lbs
Input connector 1 x XLR F / 3P
