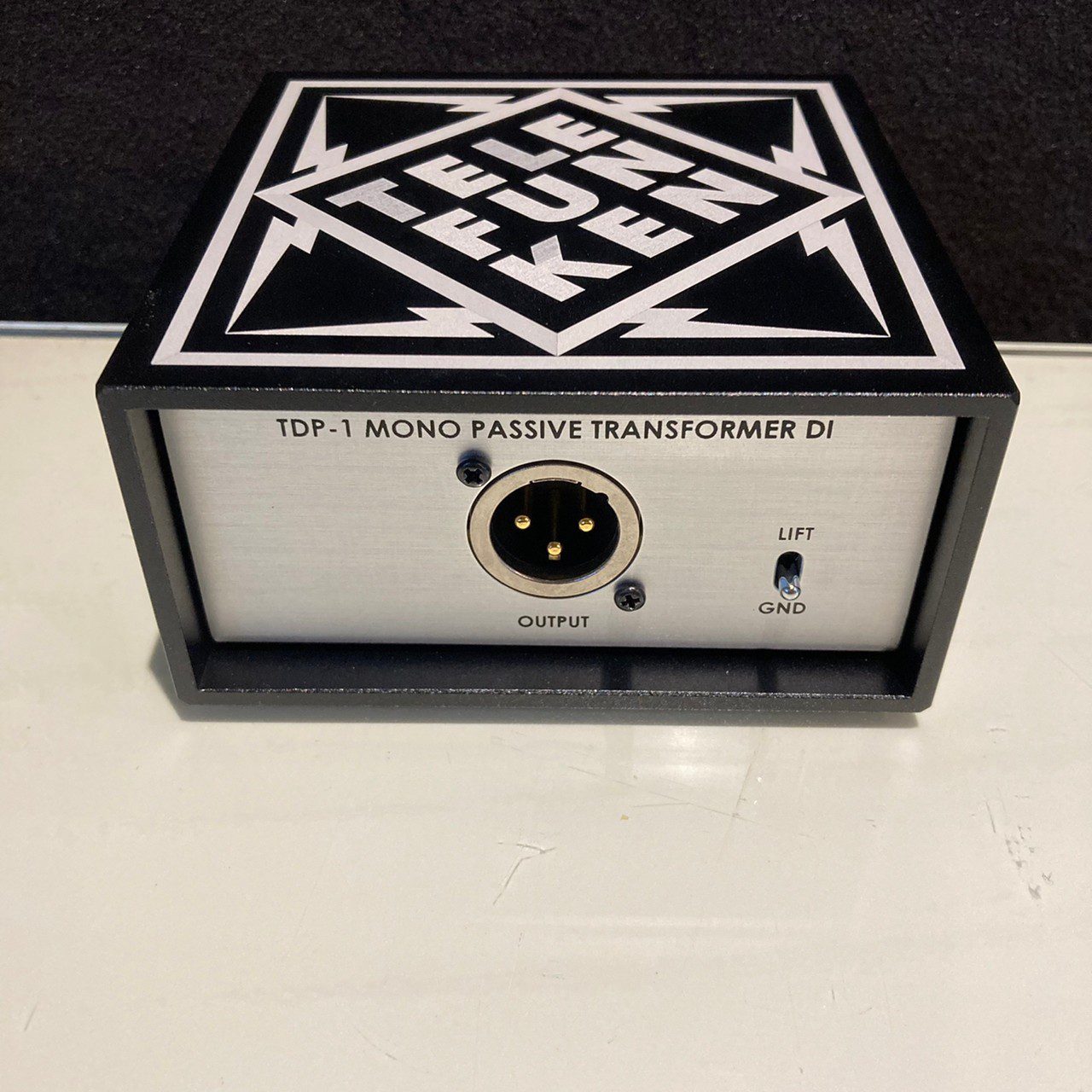

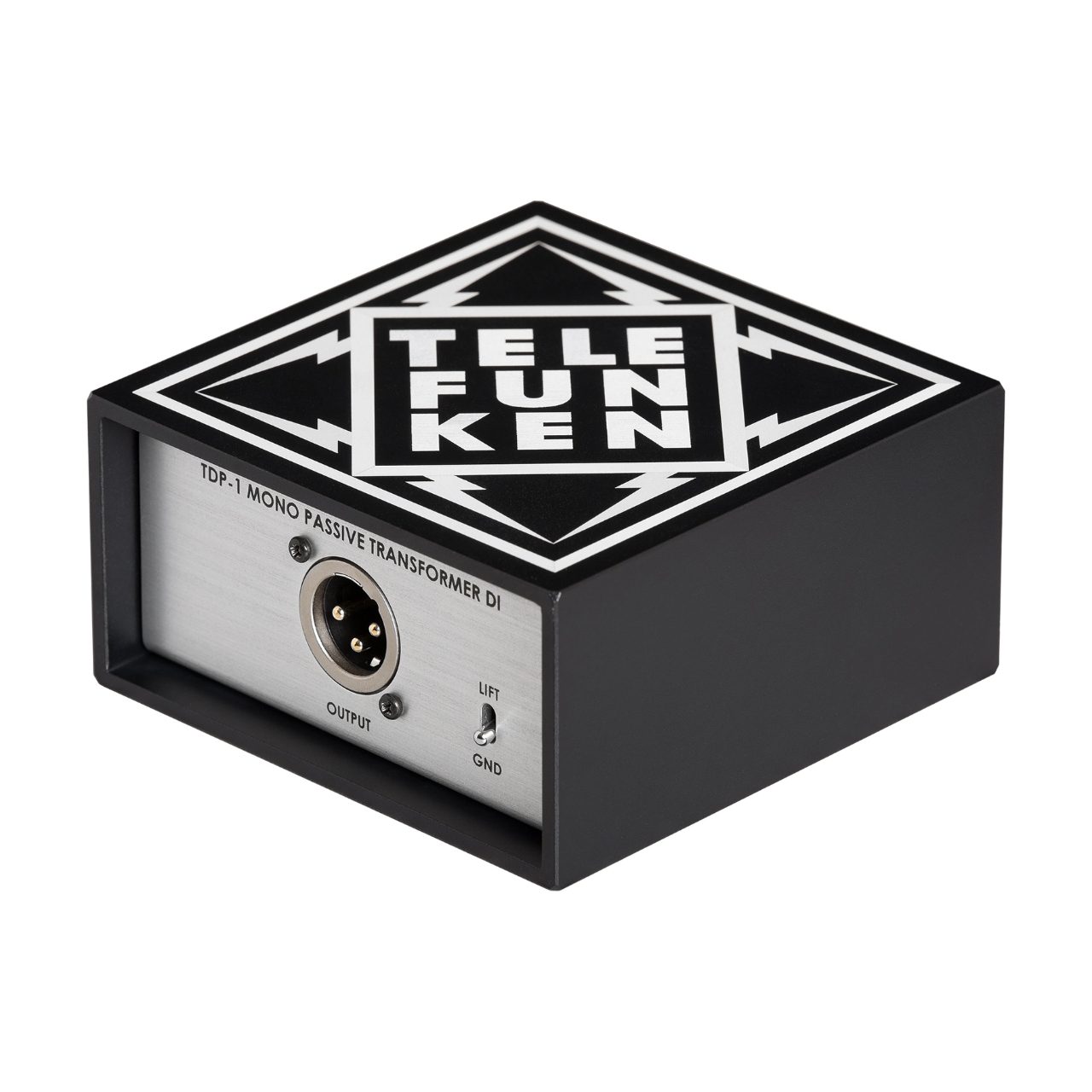

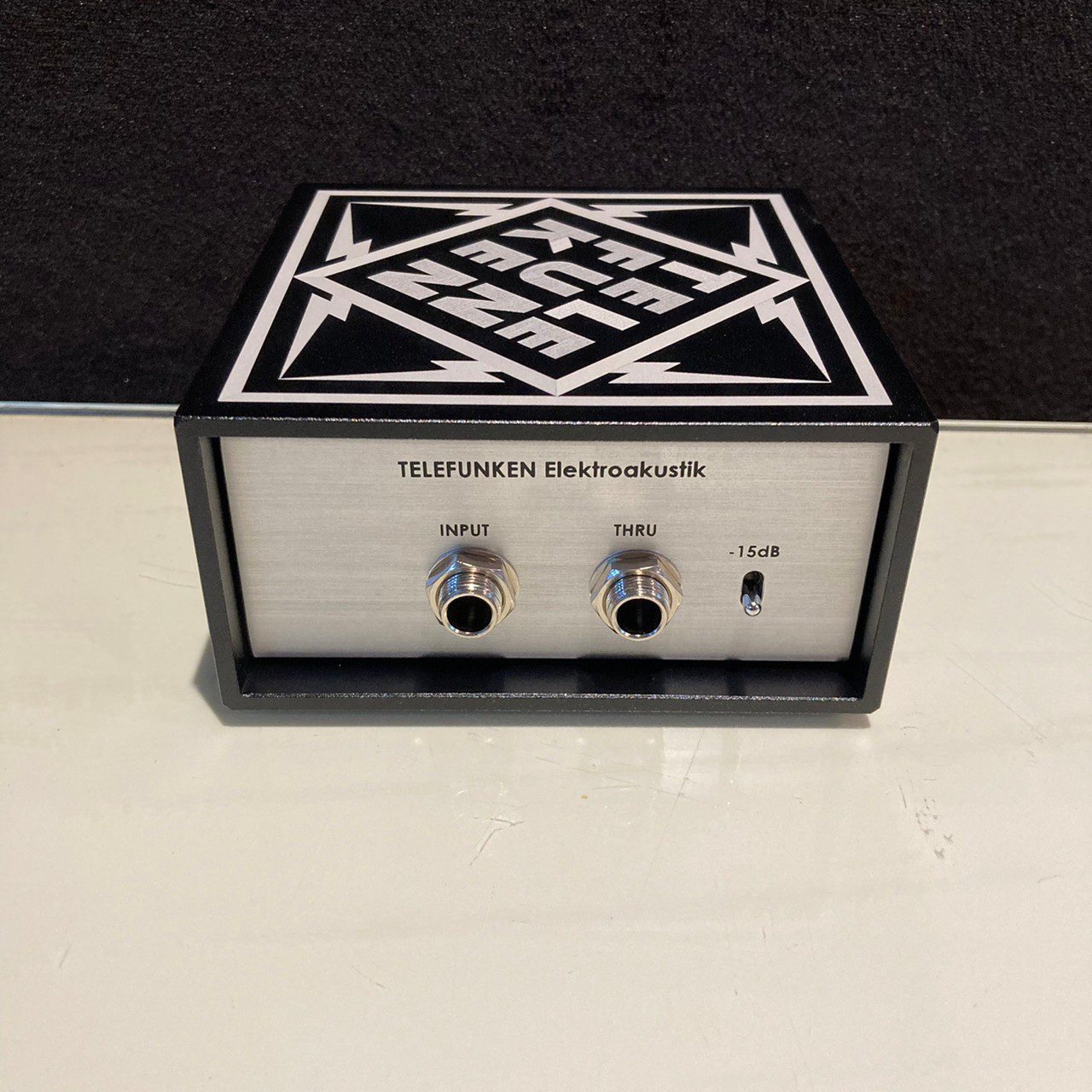

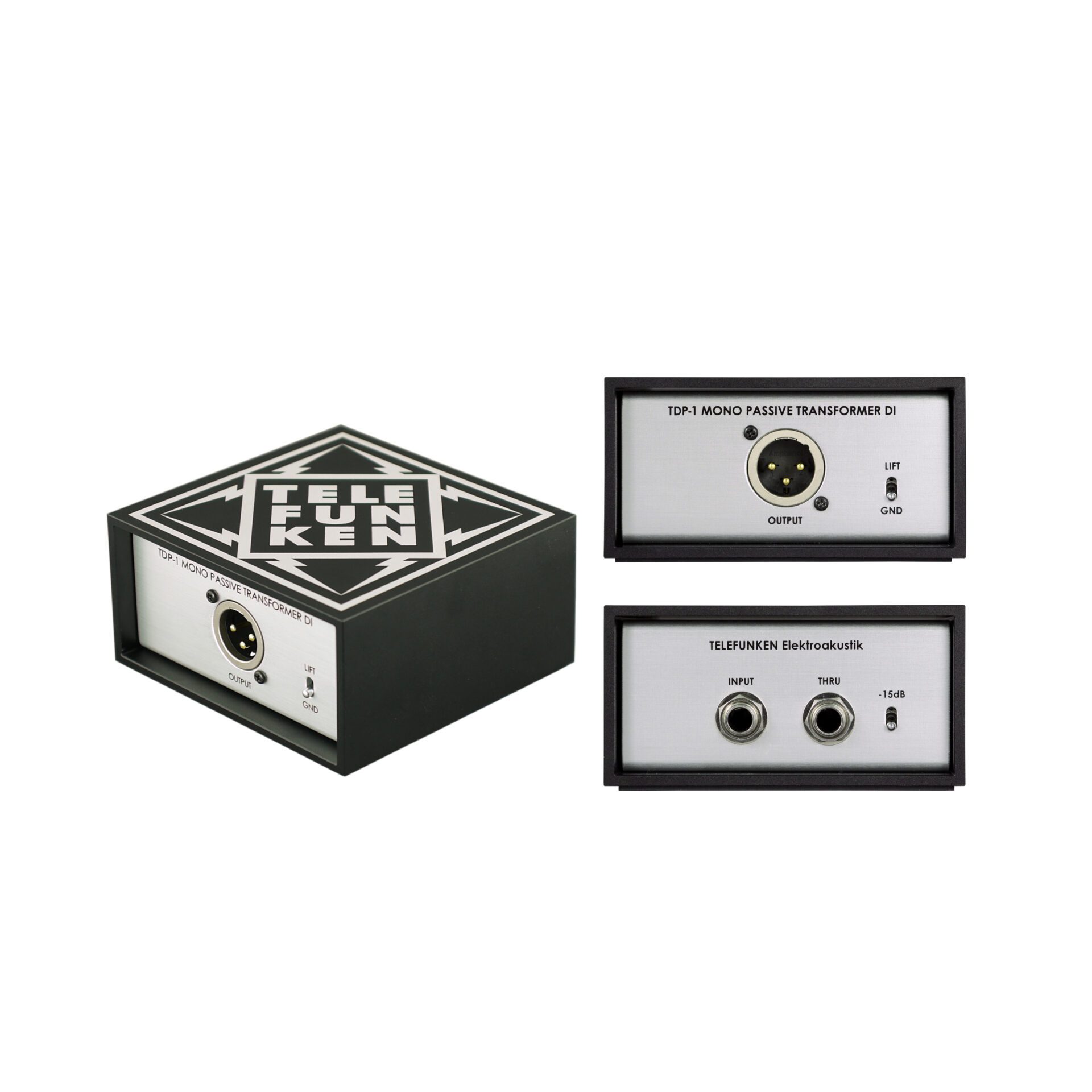

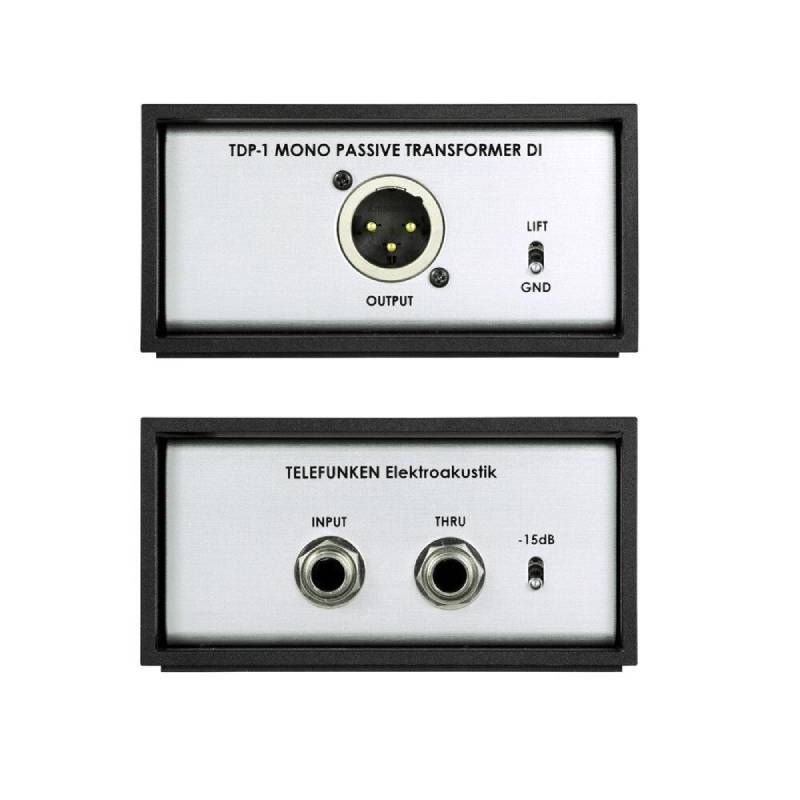

TELEFUNKEN 德律風根 TDP-1 被動式 DI BOX


TELEFUNKEN TDP-1 單聲道被動式DI BOX。從客製繞線的OEP/Carnhill輸出變壓器到電路板上的鍍金走線,這DI Box各個方面都旨在實現最大的聲音完整性。提供可以期待溫暖而豐富的音色,並且擠壓鋁製外殼確保了較長的使用壽命。當您需要將樂器電平信號轉換為麥克風電平信號時,以音質為重中之重。

  • 全系列公司貨、享保固
  • 實體門市 / 網路同步銷售
  • 專業錄音室及音樂製作工程人員詢問
  • 門市提供免費試聽服務

NT$9,500 NT$12,200

This item: TELEFUNKEN 德律風根 TDP-1 被動式 DI BOX
NT$9,500 NT$12,200
NT$9,500 NT$12,200
NT$13,400 NT$13,500
NT$9,700 NT$9,800
Compare

TELEFUNKEN TDP-1 被動式 DI BOX

• 定制繞線OEP/Carnhill 變壓器,英國製造
• -15 dB 衰減開關
• 地面升降開關
• 堅固的鋁製結構
• 用於保護的嵌入式開關和連接器
• 100% 通孔元件
• Amphenol 連接器
• WIMA 和Nichicon 電容器
• 1% 1/4W 金屬膜電阻器

TELEFUNKEN TDP-1

將樂器轉換為麥克風電平信號
而不會降低信號

在許多情況下,您需要直DI BOX來平衡不平衡的信號。

例如,如果您需要較長的導線,或者如果您想將樂器直接插入麥克風前置放大器。

您都需要一個不會破壞您的音色的盒子,而這正是Telefunken TDP-1 擅長的地方。優質組件和智能設計帶來了驚人的平坦頻率響應(從 10Hz 到 40kHz +/-2dB),這意味著無論您放入什麼,從另一邊就會得到什麼。

為什麼變壓器很重要?

實際上,將銅纏繞在線圈上、產生磁場以及根據您的意願彎曲電子有很多細微差別。

劣質變壓器會使您的信號聽起來沉悶、無力和毫無生氣——缺乏音樂性。
卓越的變壓器,例如 TD-1 中的定制繞線 OEP/Carnhill 變壓器,不僅可以達到平衡和隔離信號的技術目的,而且具有出色的豐富度、細節、深度和尺寸。

TELEFUNKEN TDP-1
TELEFUNKEN TDP-1

哪個適合我,被動或主動直接盒子?

簡短的回答是,這取決於您插入的內容。一般來說,在任何音頻信號路徑中,您都希望最大限度地減少增益級的數量以實現最大的聲音保真度。

如果您要使用主動電子設備平衡儀器的信號,請選擇被動DI。
如果您正在使用帶有被動拾音器的樂器,請選擇主動 DI。

粉絲頁直接詢問 :

反拍樂器 FB

There’s actually a lot of nuance in winding copper around a coil, generating magnetic fields,

and bending electrons to your will. Inferior transformers can leave your signal sounding dull, limp, and lifeless – devoid of musicality.

Exceptional transformers such as the custom-wound OEP/Carnhill transformer in the TD-1 not only serve their technical purpose of balancing and isolating your signal,

but they do so with outstanding richness, detail, depth, and dimension.

We know that the direct box is one of the least exciting parts of your rig to consider.

But the fact is that it’s an integral part of your signal path, allowing you to convert between instrument- and microphone-level signals without noise issues and level mismatches.

_Direct boxes are a much-needed solution for many situations both onstage and in the studio,

and if an inferior direct box alters your tone, there’s not much you’re going to be able to do about.

With the Telefunken TD-1, your direct box will serve its purpose while providing the full, rich sound of whatever you plug into it.

The short answer is that it depends on what you’re plugging into it.

Generally speaking, in any audio signal path, you want to minimize the number of gain stages

If you’re balancing the signal of an instrument with active electronics,

___文字____

___文字____

貨號: 11810003 分類: ,
規格
  • 類型:被動式 DI BOX
  • 頻率範圍: 10 Hz - 70 kHz,±1 dB
  • 變壓器:Custom-Wound OEP/Carnhill
  • 輸入阻抗:> 20 kΩ
  • 輸出阻抗:< 200 Ω
  • 最大SPL(對於1% THD): > +18 dBV
  • 輸入連接:1/4“ 插孔
  • 輸出連接:XLR 輸出,1/4“ Thru
  • 尺寸:100 毫米 x 100 毫米 x 50 毫米 (寬) x 50 毫米 高
  • 重量:490 g
  • 包含的配件:布製抽繩袋
